Sequencer
Chandeliers
Your Product Code
SQ1-SEQUENCER-1
Description
Sequencer is a modular system with both open and closed glass diffusers, available in several stunning powder coated finishes. Tier 1 Seqencer offers 1, 2 and 4 head configurations.
- Aluminum, Glass
Product Dimensions
Sequencer 1 : 15”h x 7”dSequencer 2 : 15”h x 22”lSequencer 4 : 15”h x 54”lProduct Weight
1 Head Assembly: 5lbs2 Head Assembly: 12lbs4 Head Assembly: 25lbs
Materials
Performance
- Open Matte Glass: 705 lumens / head
- Closed Matte Glass: 596 lumens / head
Suspension
- Cable Suspension
- Minimum hang height 6"
- Maximum hang height 72"
- Round Deep Canopy (White)
- Field trimmable
Certification
UL Listed
UL Listed to Canadian safety standards.
- Suitable for Damp Locations
- IP20
Led Lifespan
- 50k hours
Specification logic
Price available on request
Drawings

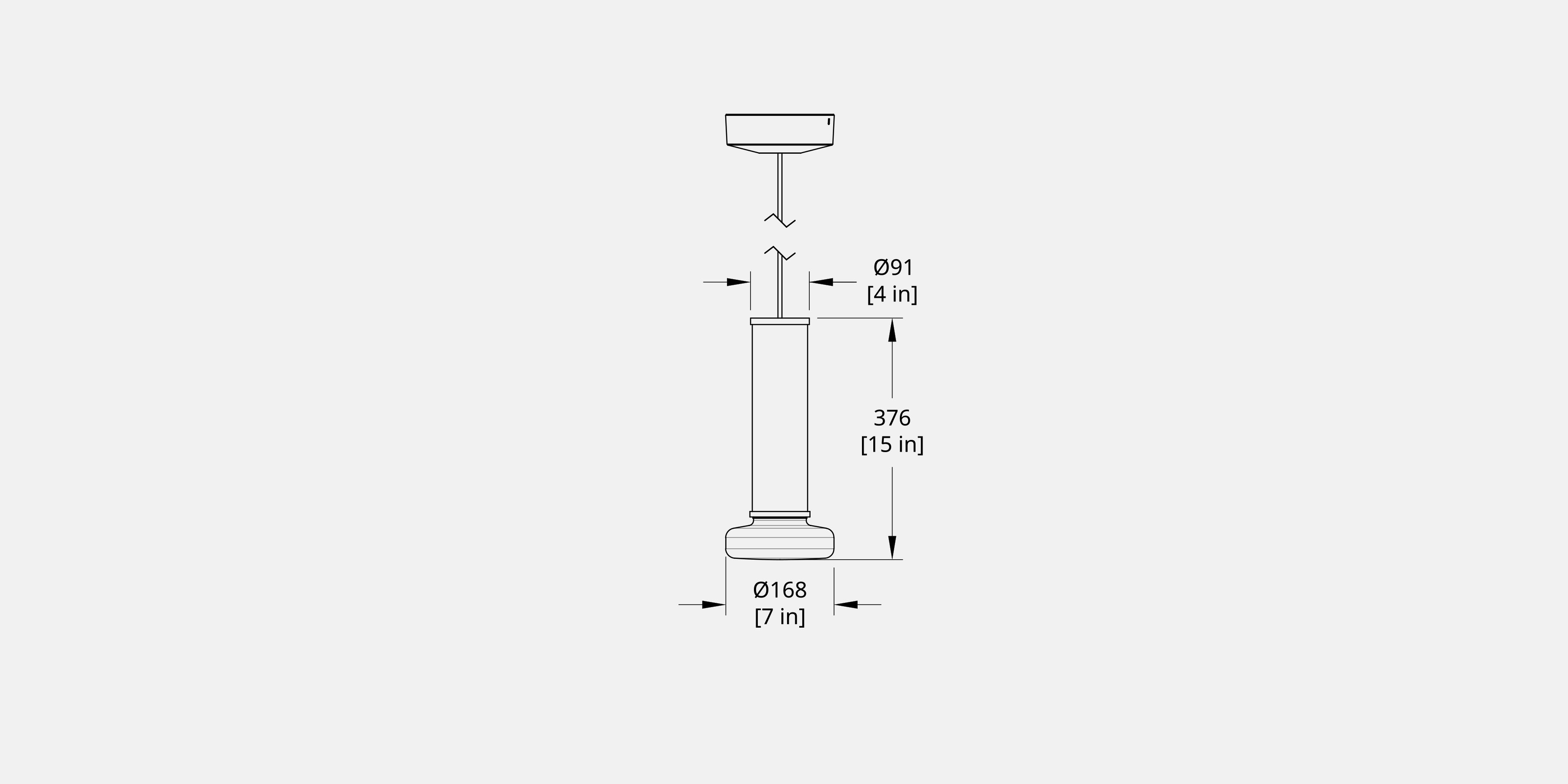

Sequencer 1 Technical Drawing

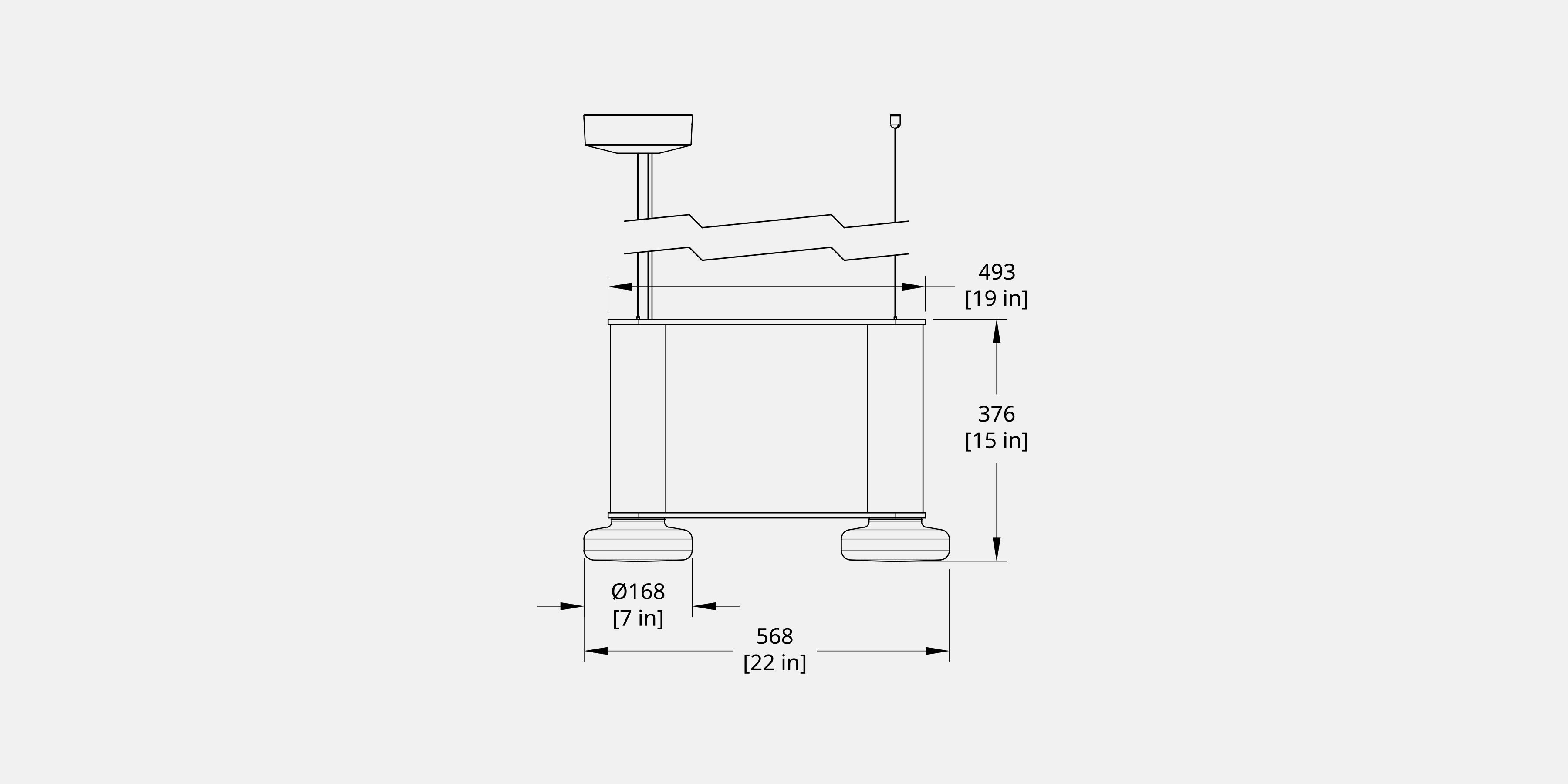

Sequencer 2 Technical Drawing

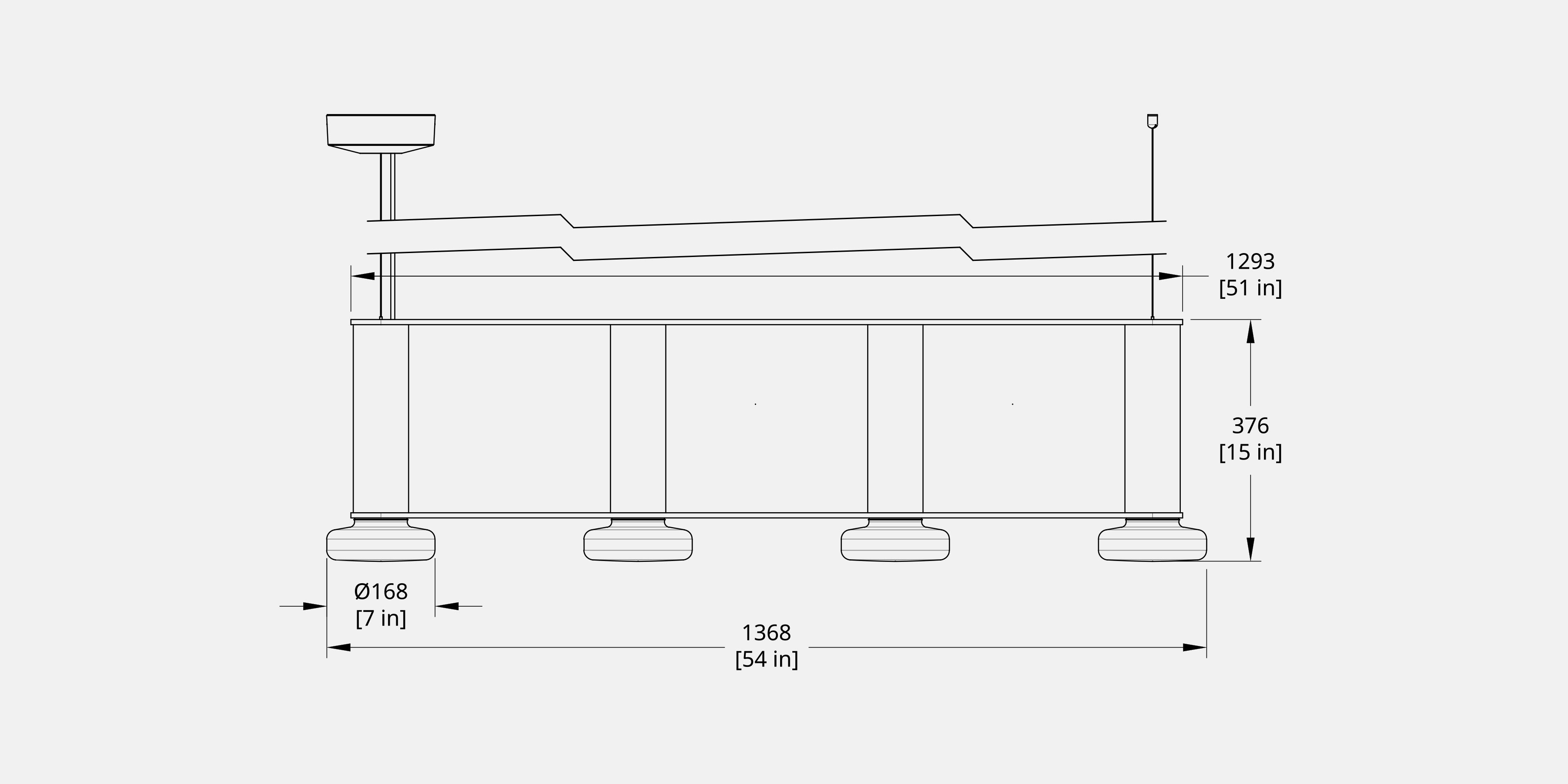

Sequencer 4 Technical Drawing
