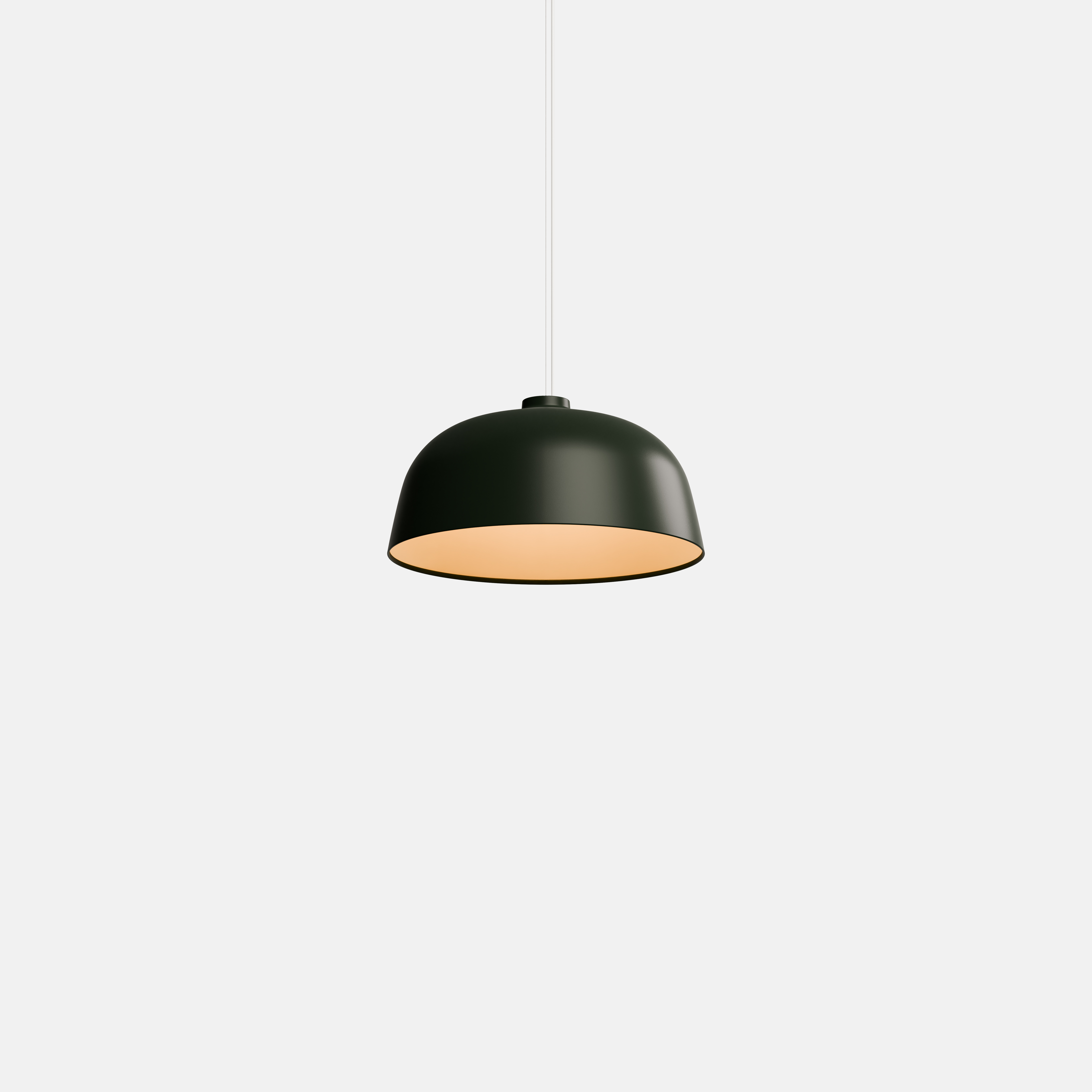

Dram
Pendants
Your Product Code
DR-DRAM
Description
Have a Dram! Dram carries a clear silhouette and a bold sense of scale, offered in three intoxicating sizes. Building on the legacy of the iconic simple shaded Hoist collection, Dram expands the concept with dual finishes that highlight the meeting of color. Designed entirely by the RBW team, from concept to final form.
- Spun aluminum, PET
Product Dimensions
Small 10 in dia x 7 in H | Medium 18 in dia x 10 in H |Large 26 in dia x 13 in HProduct Weight
Small 6 lbs / 2.7kg | Medium 7 lbs / 3 kg | Large 8 lbs / 3.6 kg
Materials
Performance
- Small 774 lumens | 11.9W
- Medium 923 lumens | 16W
- Large 1085 lumens | 16.8W
- Above stats are averages measured based on 2700K fixture. For other variations please see photometry download below.
Patent File Number
US: Patent pending. Filed and under review.Suspension
- 72" standard cord length
- Field trimmable cord
Certification
UL Listed
UL Listed to Canadian safety standards.
- Suitable for Damp Locations
Led Lifespan
- 50k hours
Specification logic
Price available on request
Drawings
Dram Technical Drawings
575 Boices Ln Kingston NY 12401 T +1 212 388 1621 sales@rbw.com
- Dram
- Pendants
575 Boices LnKingston NY 12401T +1 212 388 1621sales@rbw.com
For 2D & 3D drawings of all products, including CAD, Revit and IES files, please visit rbw.com
Price available on request
- Dram
- Pendants
Overview
Description
Description
Have a Dram™! Dram™ carries a clear silhouette and a bold sense of scale, offered in three intoxicating sizes. Building on the legacy of the iconic simple shaded Hoist collection, Dram™ expands the concept with dual finishes that highlight the meeting of color. Designed entirely by the RBW team, from concept to final form.
Details
Materials
Spun aluminum, PETPerformance
- Small 774 lumens | 11.9W
- Medium 923 lumens | 16W
- Large 1085 lumens | 16.8W
- Above stats are averages measured based on 2700K fixture. For other variations please see photometry download below.
Led Lifespan
- 50k hours
Patent File Number
US: Patent pending. Filed and under review.Certification
UL Listed
UL Listed to Canadian safety standards.
- Suitable for Damp Locations
Note on Imagery
All product photos are made using the correlated color temperature (CCT) of 2700k. The actual color temperature experienced within your environment may vary based on other light sources and materials present.
Dimensions
Suspension
- 72" standard cord length
- Field trimmable cord
Product Dimensions
Small 10 in dia x 7 in H | Medium 18 in dia x 10 in H |Large 26 in dia x 13 in HProduct Weight
Small 6 lbs / 2.7kg | Medium 7 lbs / 3 kg | Large 8 lbs / 3.6 kgTechnical Drawing
Scroll to see more. Tap the center of the image to zoom
Photometry

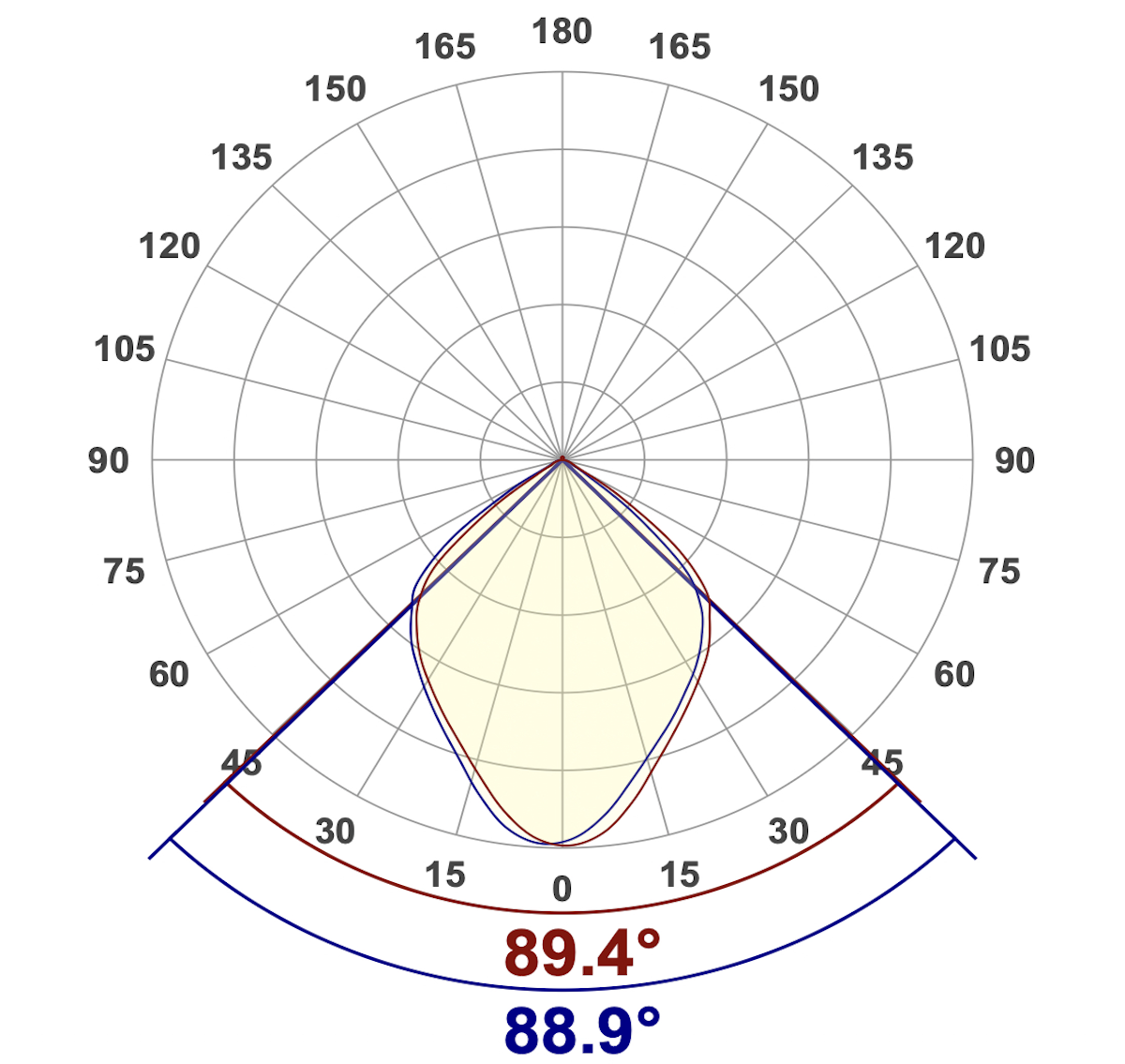

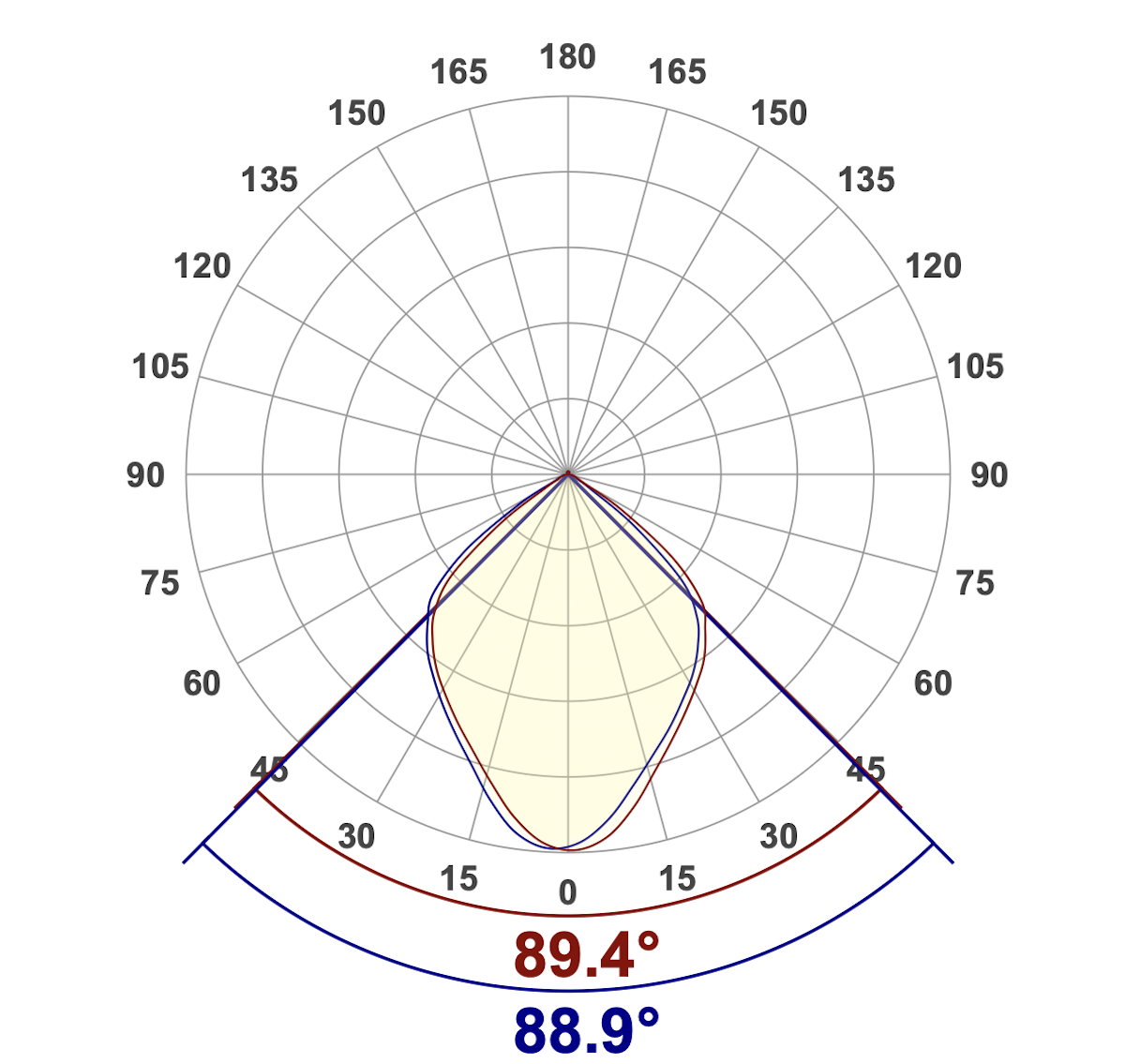

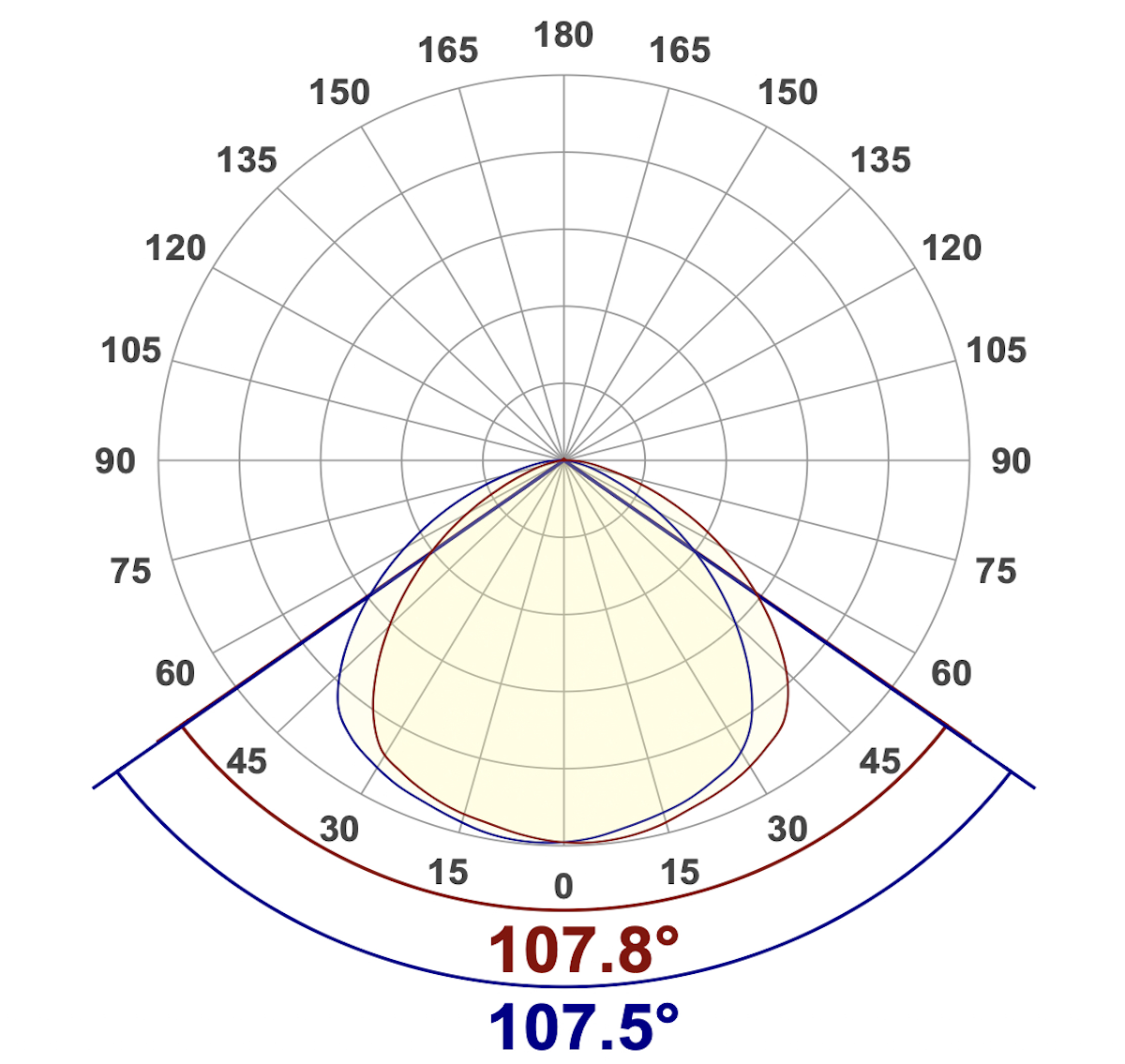

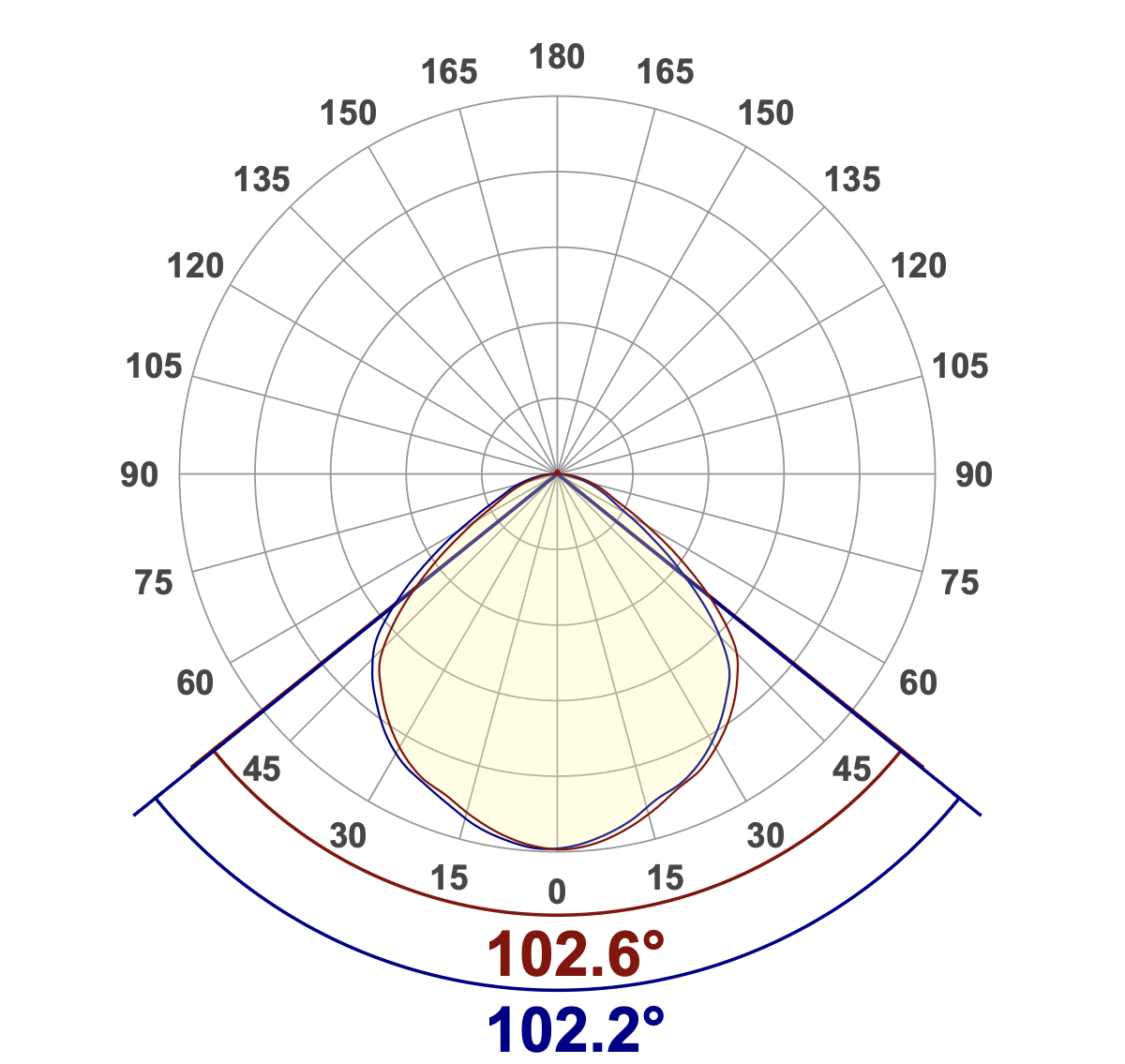

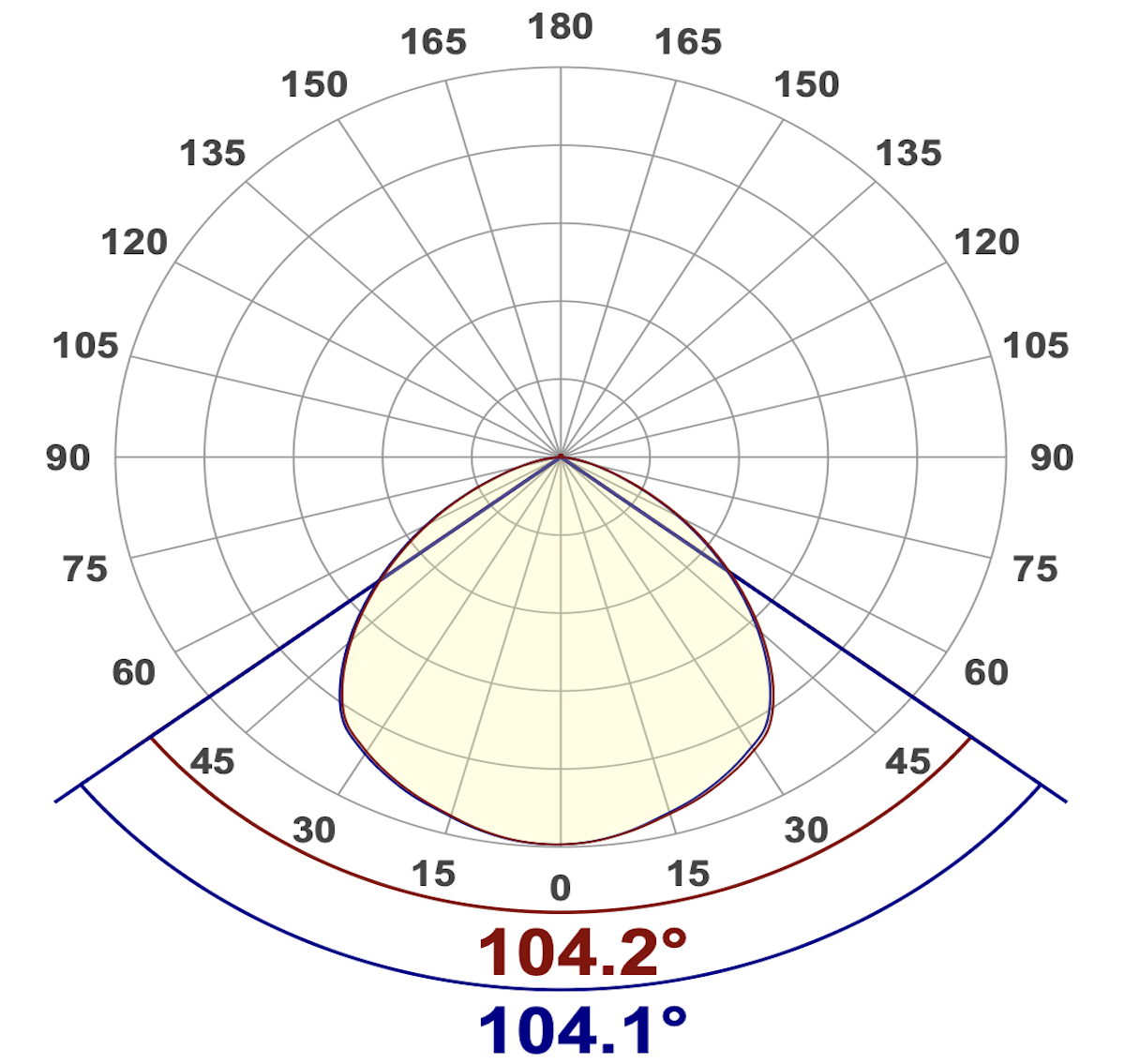

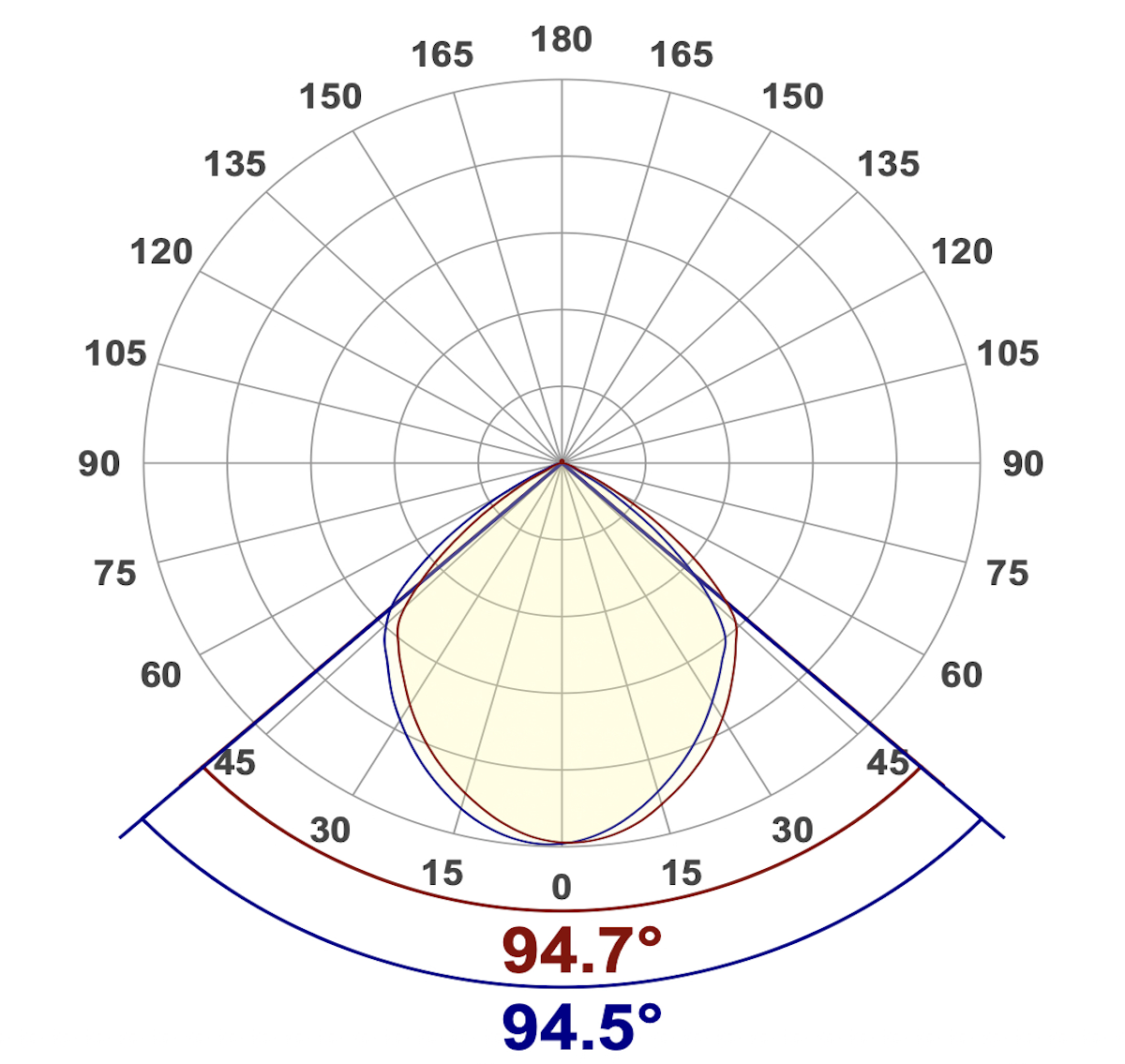

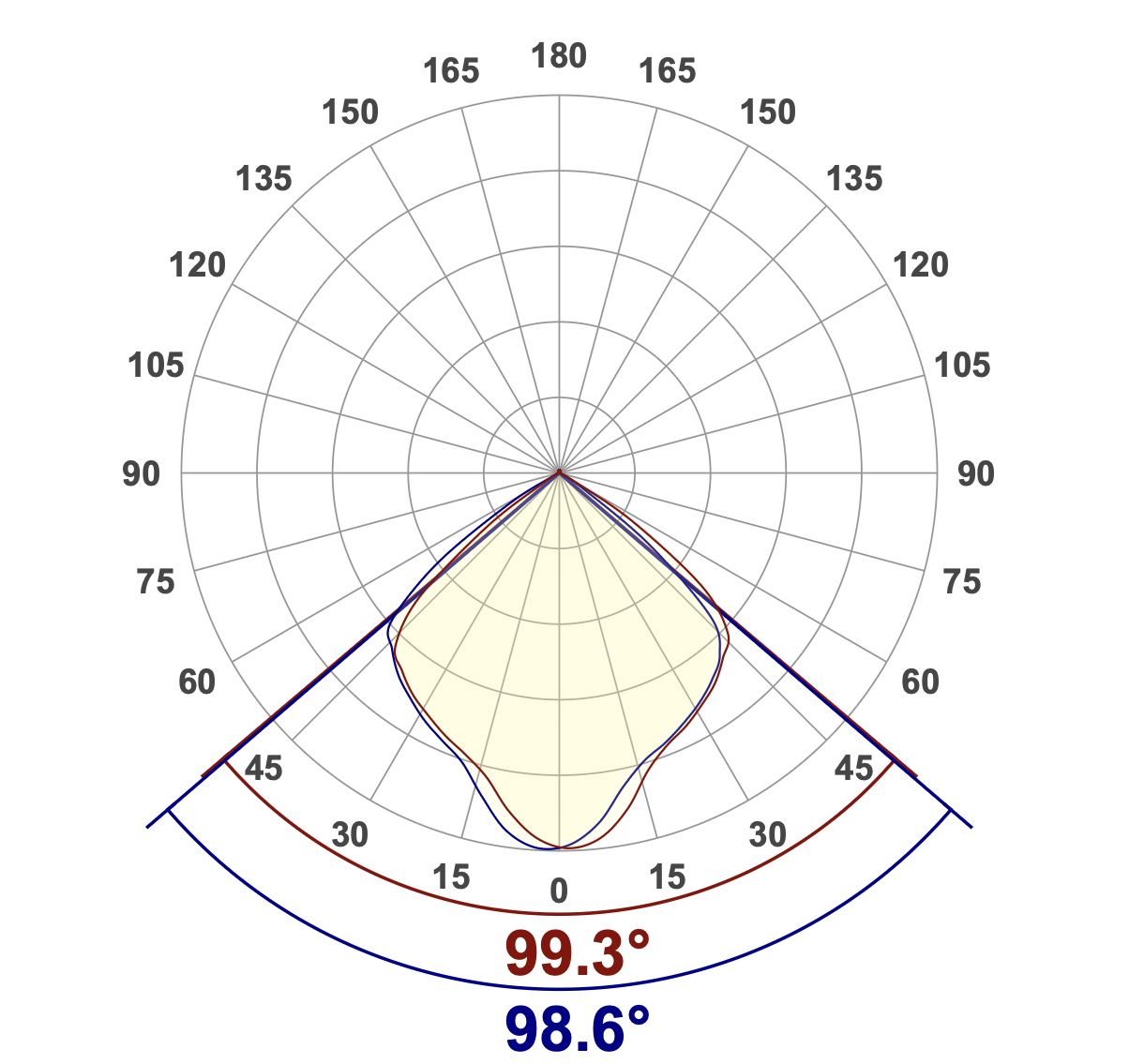

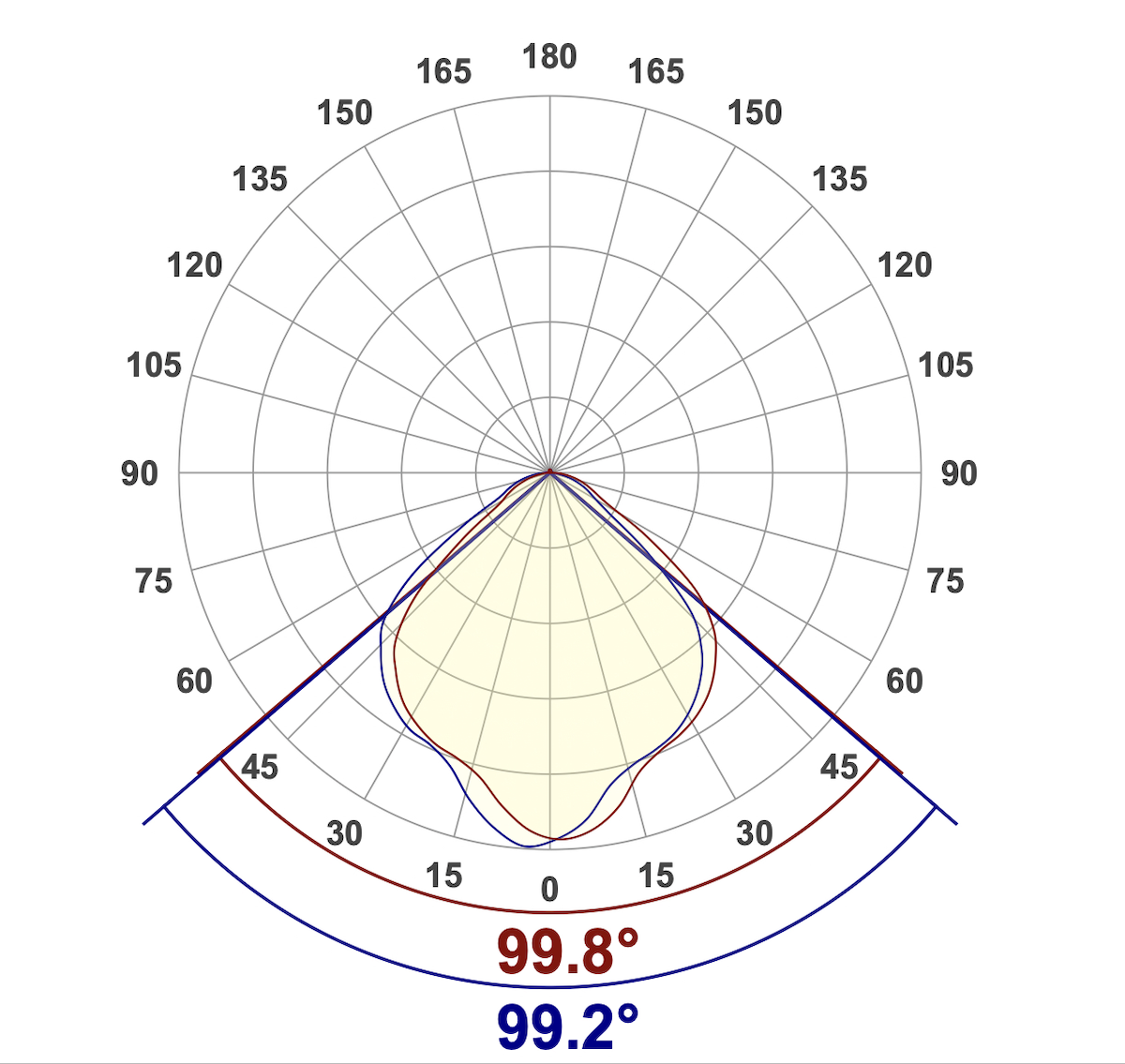

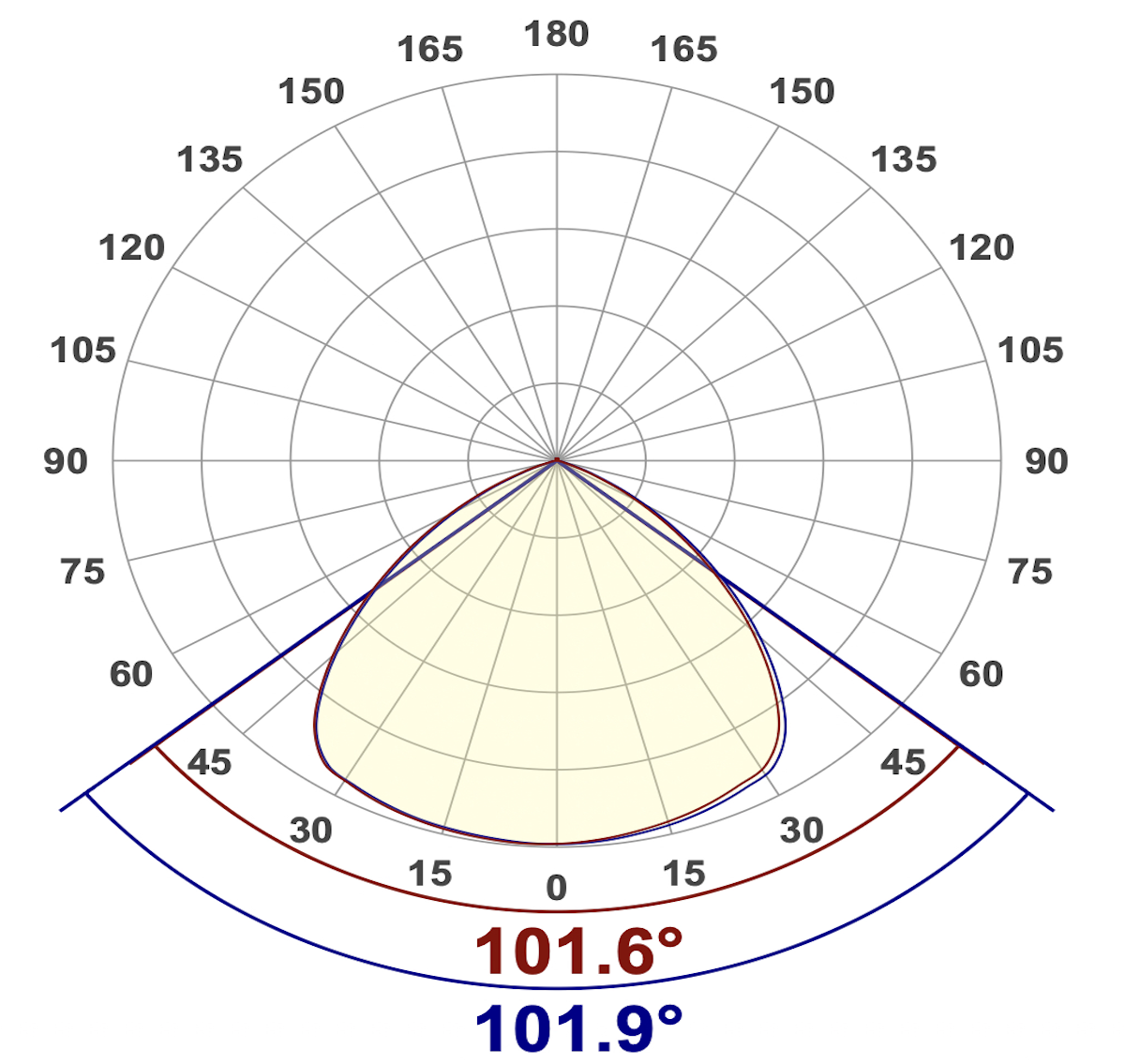

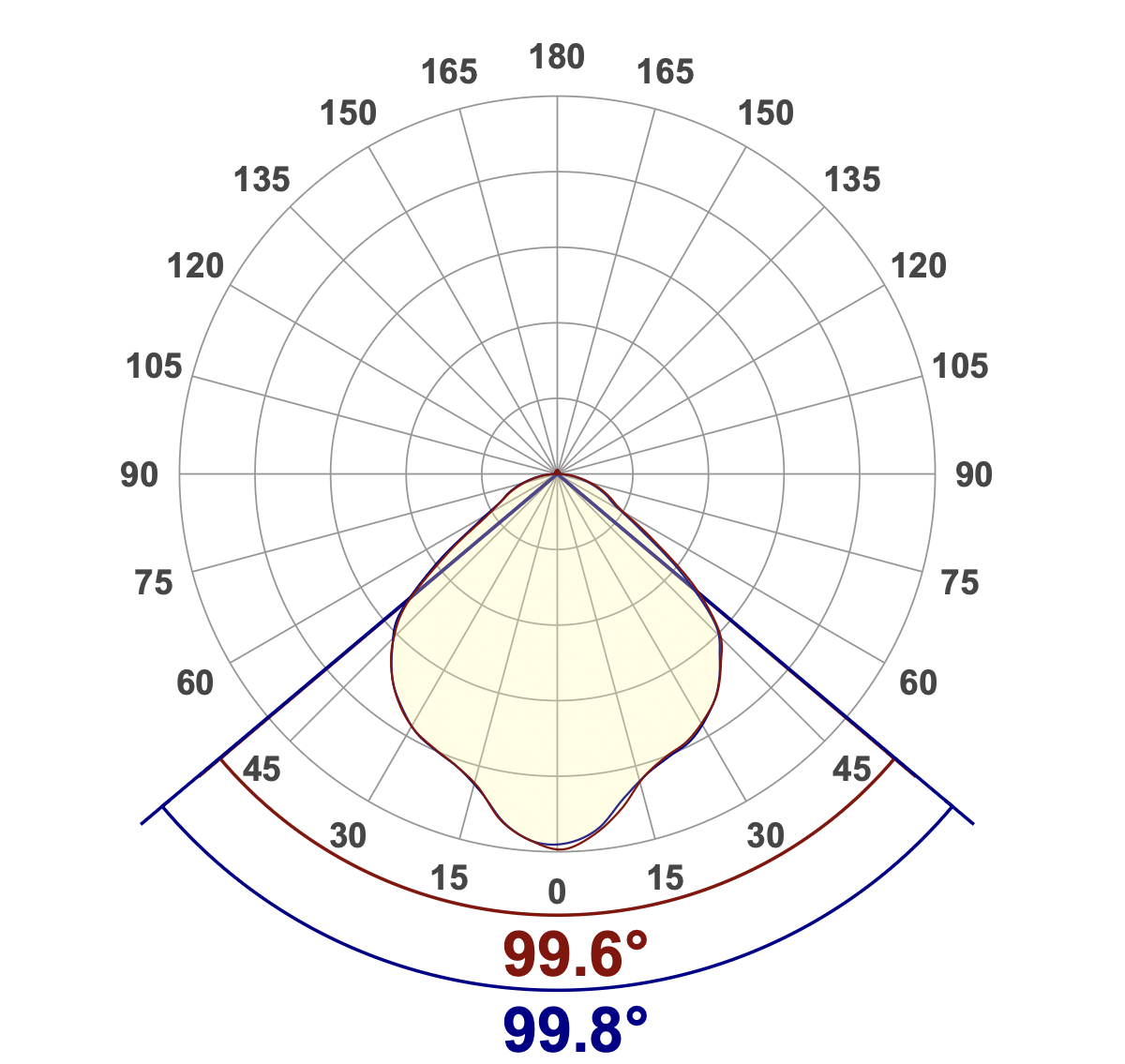

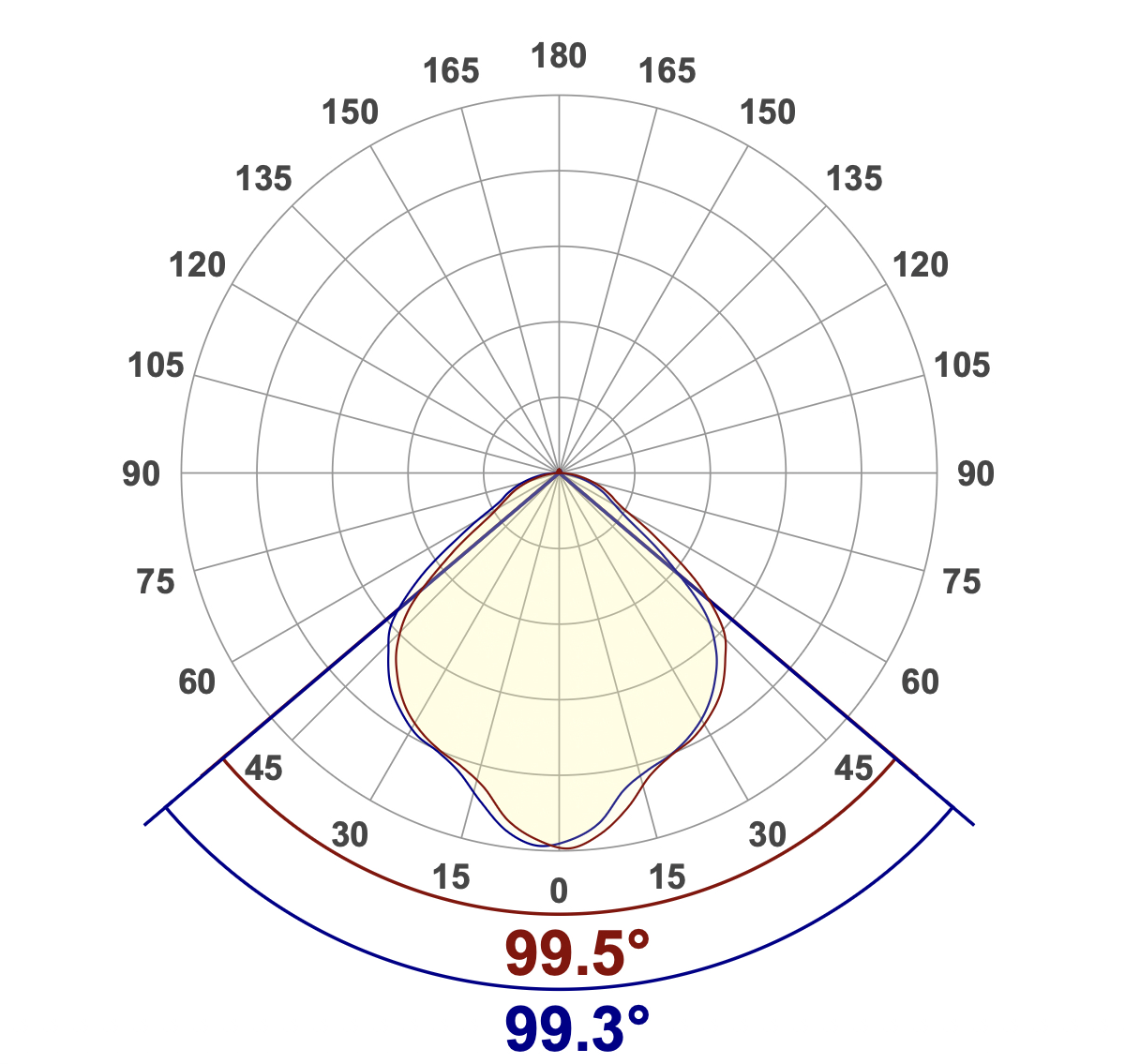

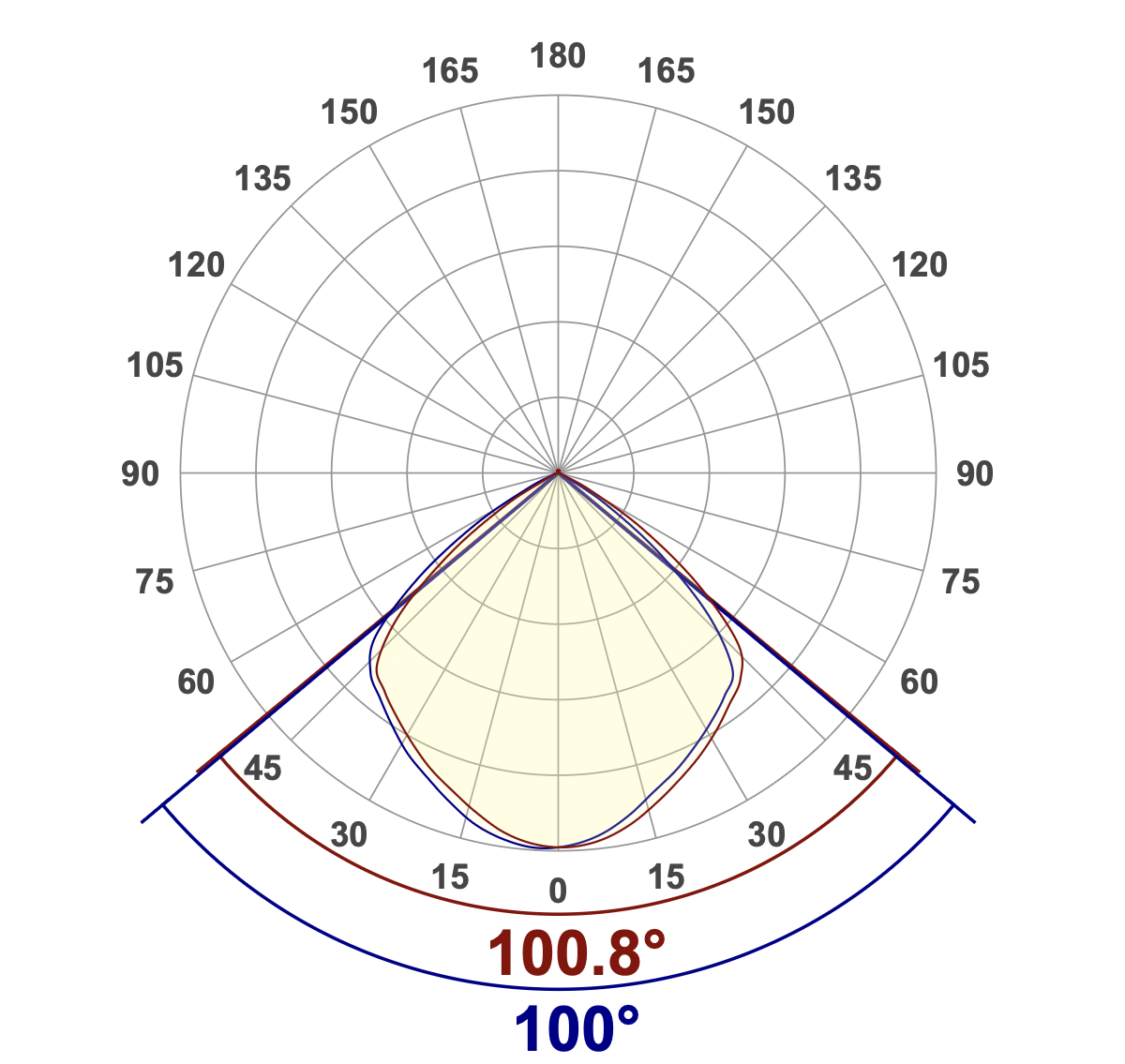

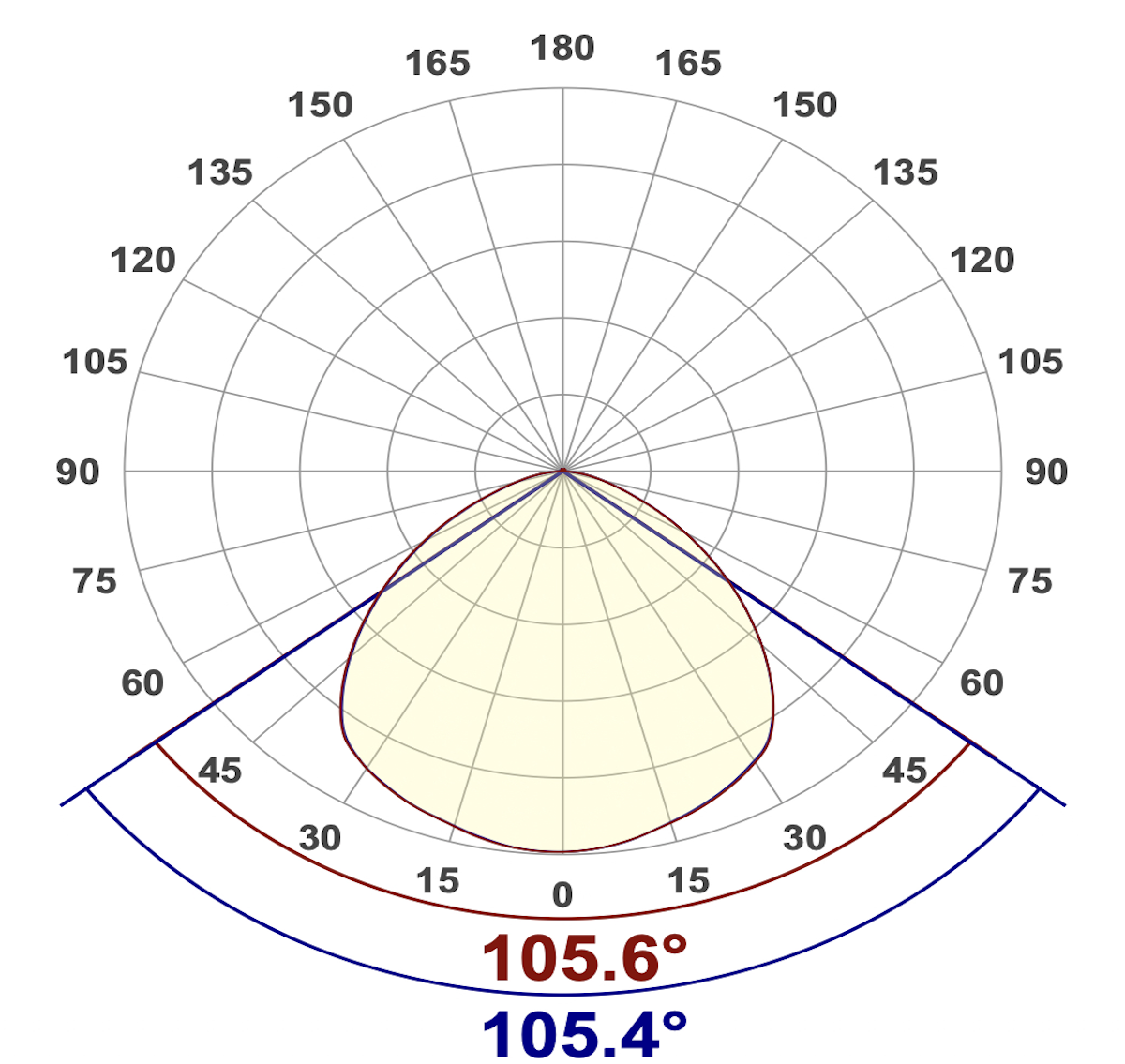

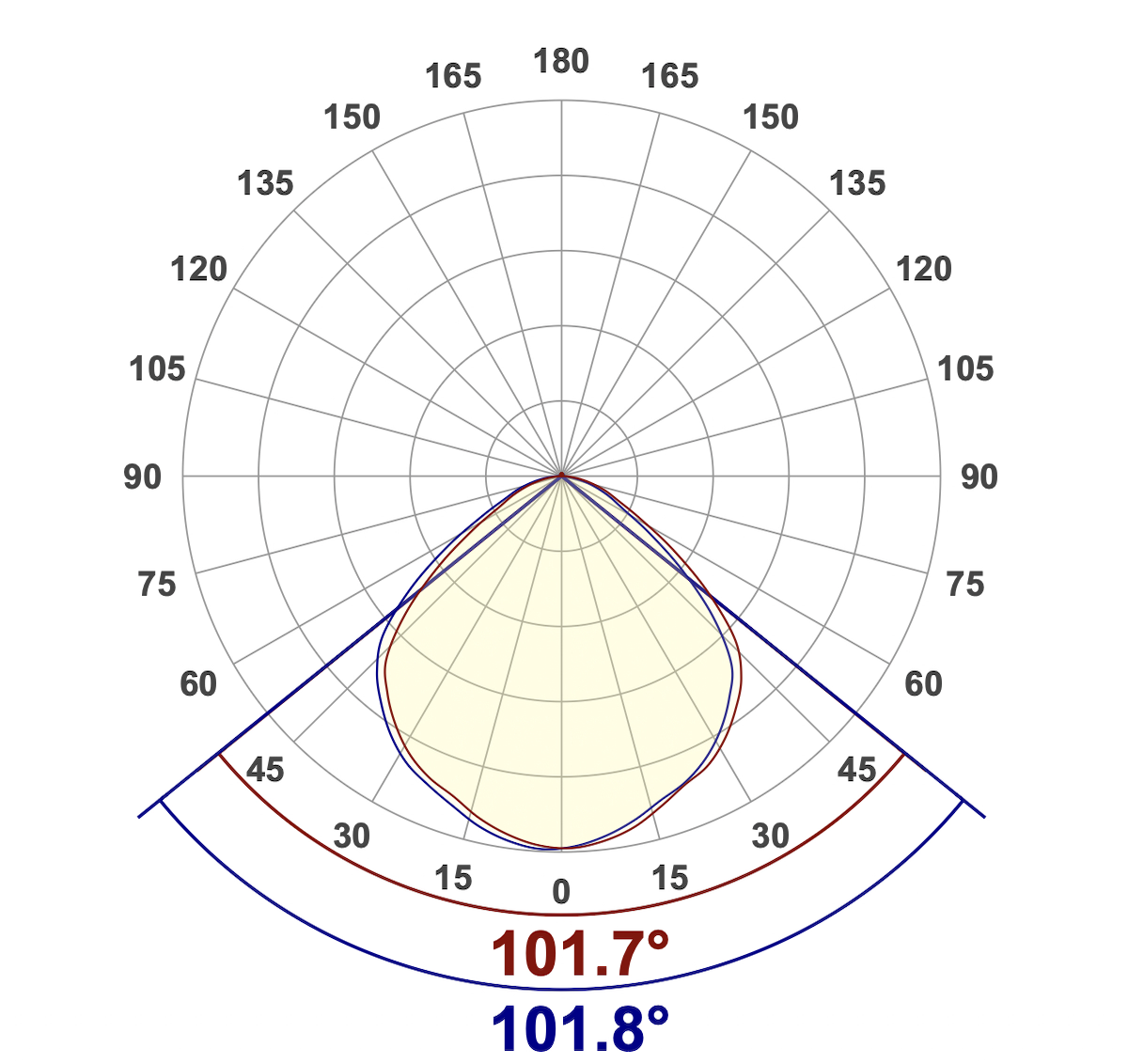

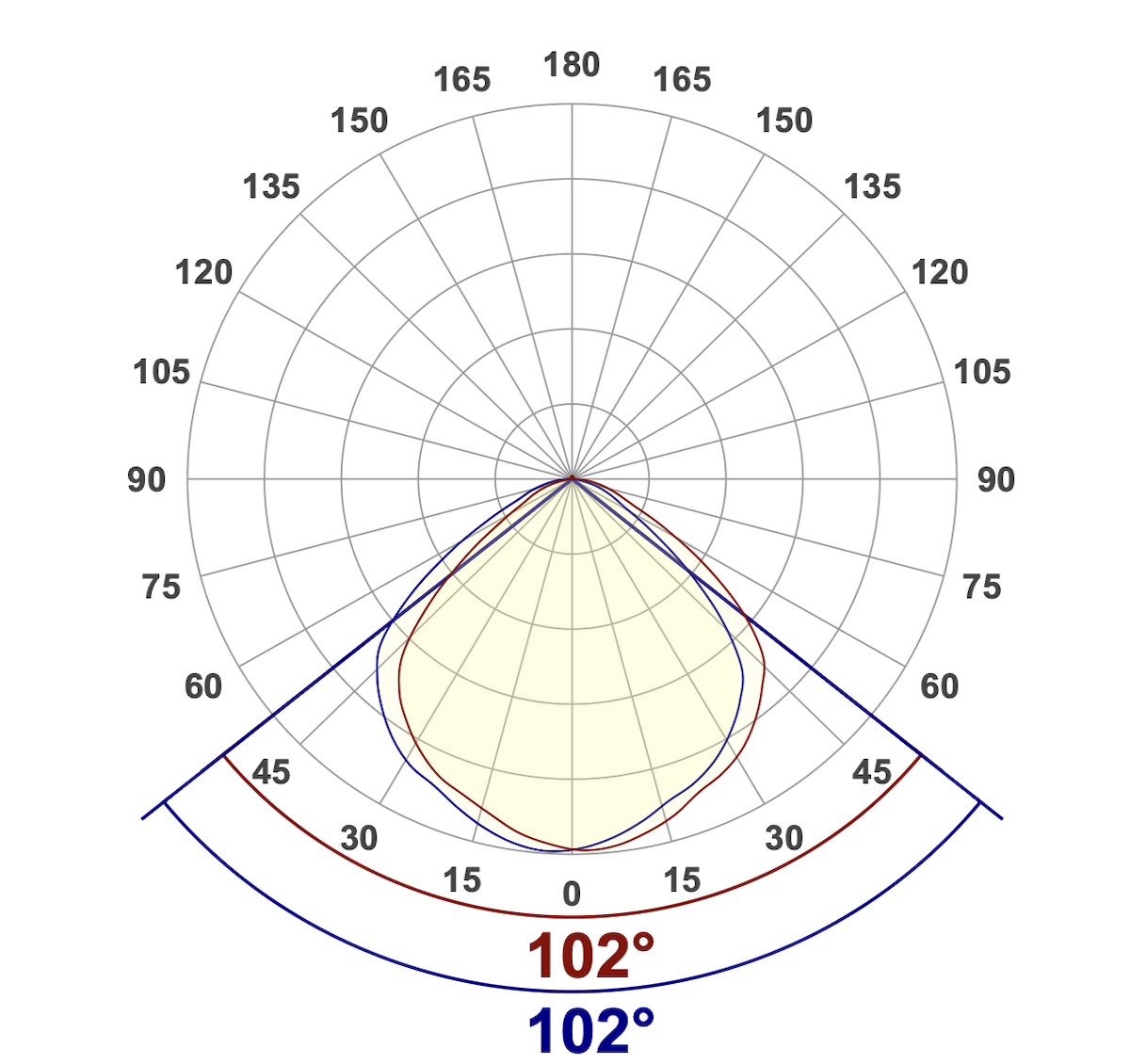

Polar Plots
Download PhotometryDram™ DR-M-PC52_PC52-MTP-27- 0.1_10V_UNV
Dram™ DR-L-PC37_PC78-MTP-27-1_10V_UNV 400mA
Dram™ DR-L-PC52_PC52-MTP-27-1_10V_UNV 400mA
Dram™ DR-L-PC54_PC98-MTP-27-1_10V_UNV 400mA
Dram™ DR-L-PC98_PC98-MTP-27-1_10V_UNV 400mA
Dram™ DR-L-PC106_PC47-MTP-27-1_10V_UNV 400mA
Dram™ DR-M-PC37_PC78-MTP-27-1_10V_UNV 350mA
Dram™ DR-M-PC54_PC98-MTP-27-0.1_10V_UNV 350mA
Dram™ DR-M-PC98_PC98-MTP-27-0.1_10V_UNV 350mA
Dram™ DR-M-PC106_PC47-MTP-27-0.1_10V_UNV 350mA
Dram™ DR-S-PC37_PC78-MTP-27-1_10V_UNV 300mA
Dram™ DR-S-PC52_PC52-MTP-27-1_10V_UNV 300mA
Dram™ DR-S-PC54_PC98-MTP-27-1_10V_UNV 300mA
Dram™ DR-S-PC98_PC98-MTP-27-1_10V_UNV 300mA
Dram™ DR-S-PC106_PC47-MTP-27-1_10V_UNV 300mA
