Dimple Dash
Sconces
Your Product Code
DP-D-WS-DIMPLE-DASH
Description
A sleek evolution of RBW’s beloved Dimple, Dimple Dash flexes the soft, domed glass design you know into a linear masterpiece. Originally created in collaboration with Ace Atelier, this elongated iteration brings new possibilities to a familiar favorite. Whether installed in perfect alignment or staggered for a playful twist, Dimple Dash strikes the balance between understated simplicity and striking presence.
- Cast solid glass, aluminum
Product Dimensions
12 in L x 6 in W x 4 in DProduct Weight
8lbs / 3.6kg
Materials
Performance
- Frosted, 1284 lumens
- Painted White, 879 lumens
- Amber, 695 lumens
- Smoke, 367 lumens
- Power Consumption DC 19.7W
Patent File Number
EU: 015110995-0003, 015110995-0004
Certification
- ADA Compliant
- Suitable for Damp Locations
- IP20
Led Lifespan
- 50k hours
Specification logic
Price available on request
Drawings

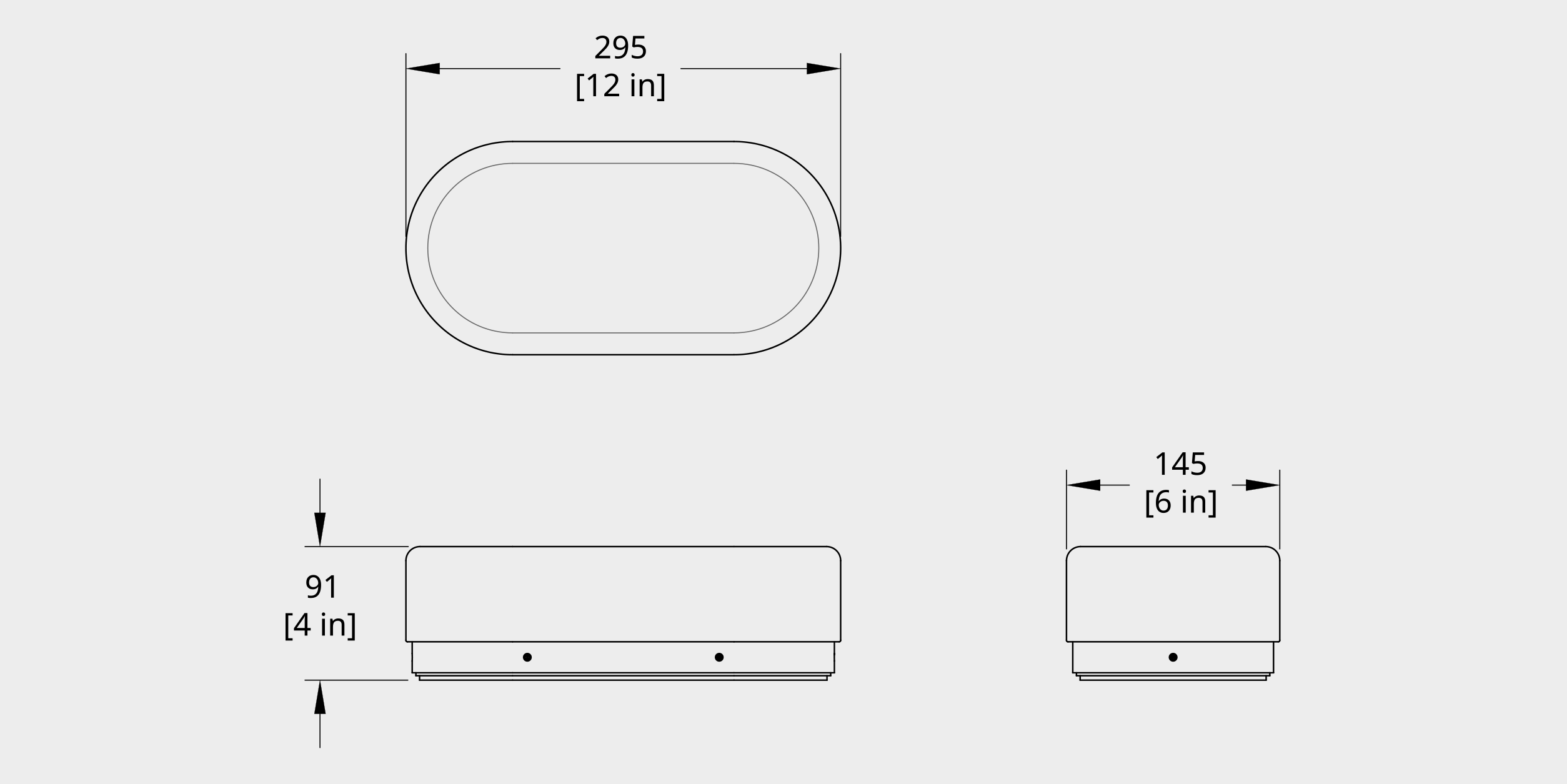

Dimple Dash dimensional drawing
575 Boices Ln Kingston NY 12401 T +1 212 388 1621 sales@rbw.com
- Dimple Dash
- Sconces
575 Boices LnKingston NY 12401T +1 212 388 1621sales@rbw.com
For 2D & 3D drawings of all products, including CAD, Revit and IES files, please visit rbw.com
Price available on request
- Dimple Dash
- Sconces
Overview
Description
Description
A sleek evolution of RBW’s beloved Dimple®, Dimple® Dash flexes the soft, domed glass design you know into a linear masterpiece. Originally created in collaboration with Ace Atelier, this elongated iteration brings new possibilities to a familiar favorite. Whether installed in perfect alignment or staggered for a playful twist, Dimple® Dash strikes the balance between understated simplicity and striking presence.
Details
Materials
Cast solid glass, aluminumPerformance
- Frosted, 1284 lumens
- Painted White, 879 lumens
- Amber, 695 lumens
- Smoke, 367 lumens
- Power Consumption DC 19.7W
Led Lifespan
- 50k hours
Patent File Number
EU: 015110995-0003, 015110995-0004Certification
- ADA Compliant
- Suitable for Damp Locations
- IP20
Note on Imagery
All product photos are made using the correlated color temperature (CCT) of 2700k. The actual color temperature experienced within your environment may vary based on other light sources and materials present.
Dimensions
Photometry
Polar Plots
Download PhotometryLumen Output / CCT
AC Input
DC Input
