Ample
Pendants
Your Product Code
AM-AMPLE
Description
Ample is a high-output pendant with a visible heat sink, using layered silicone and glass. Available in a wide range of modular designs, Ample casts a soft, diffused light with configurable expression.
- Glass, Aluminum, Silicone
Collection Notes
Each form of glass is unique. As part of the production process, there may be small air bubbles within the glass.Product Dimensions
Small Diffuser, No Shade - 8”h x 5”dLarge Diffuser, No Shade - 10”h x 5”dSmall Diffuser, Small Shade - 8”h x 8”dLarge Diffuser, Small Shade - 10”h x 8”dSmall Diffuser, Large Shade - 10”h x 14”dLarge Diffuser, Large Shade - 10”h x 14”dProduct Weight
Small Diffuser, No Shade: 6lbsLarge Diffuser, No Shade: 7lbsSmall Diffuser, Small Shade: 9lbsLarge Diffuser, Small Shade: 10lbsSmall Diffuser, Large Shade: 11lbsLarge Diffuser, Large Shade: 12lbs
Materials
Performance
- No Shade, Short Diffuser: 1231lm
- No Shade, Long Diffuser: 943lm
- Small Shade (Clear), Short Diffuser: 1065lm
- Small Shade (Clear), Long Diffuser: 923lm
- Power Consumption, DC 14.2W
Suspension
- Canopy configurations : White 7" Round Deep Canopy, White Trimless Canopy, White Flat Canopy
- Stem mount (matte white) or Cable suspension (white)
- Cable suspension: min hang height of 6", max of 72"
- Stem height: 14" standard, contact sales@rbw.com for custom lengths
- Field trimmable
Certification
UL Listed
UL Listed to Canadian safety standards.
- Suitable for Damp Locations
- IP20
Led Lifespan
- 50k hours
Specification logic
Price available on request
Drawings

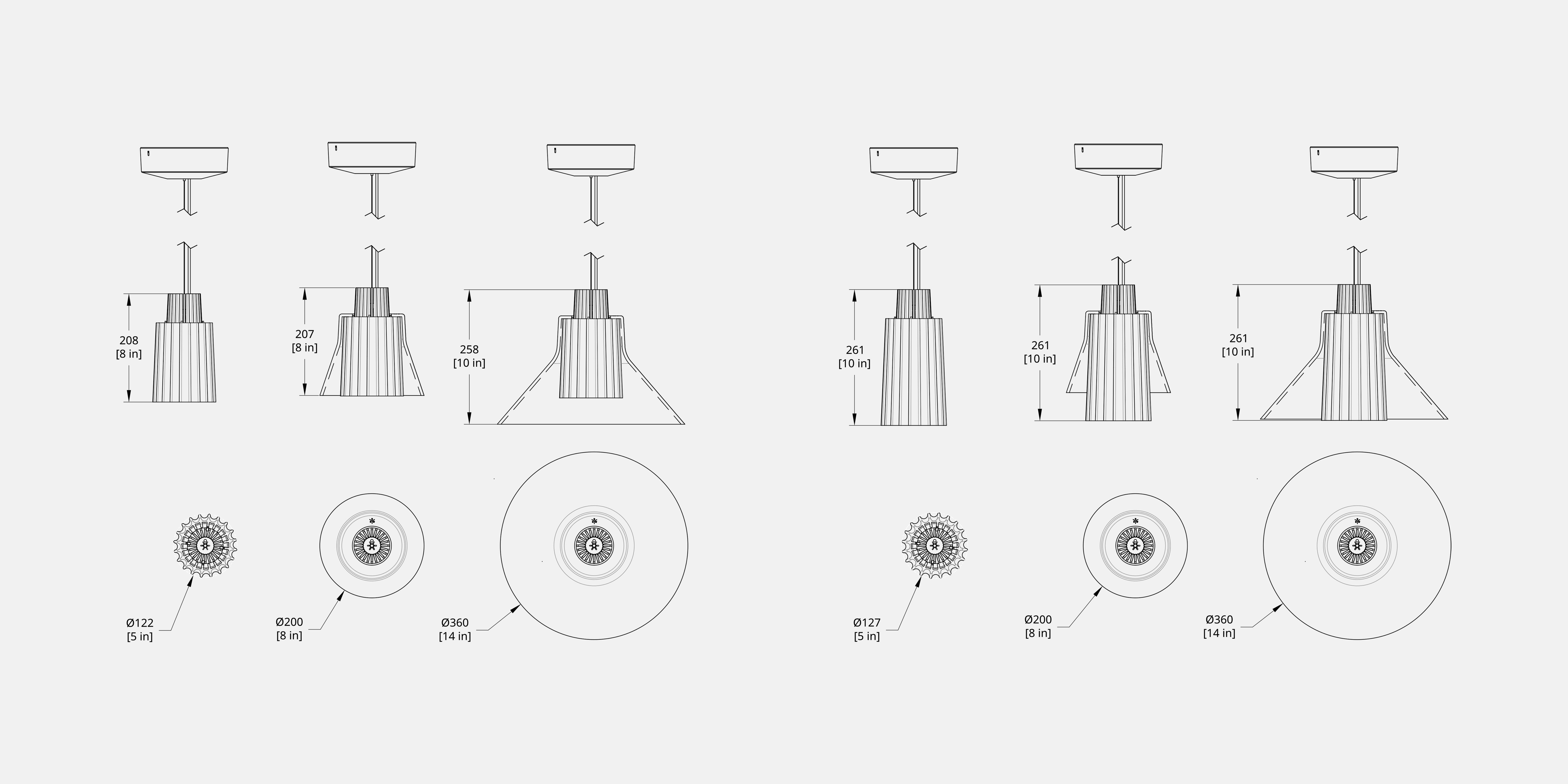

ample technical drawing

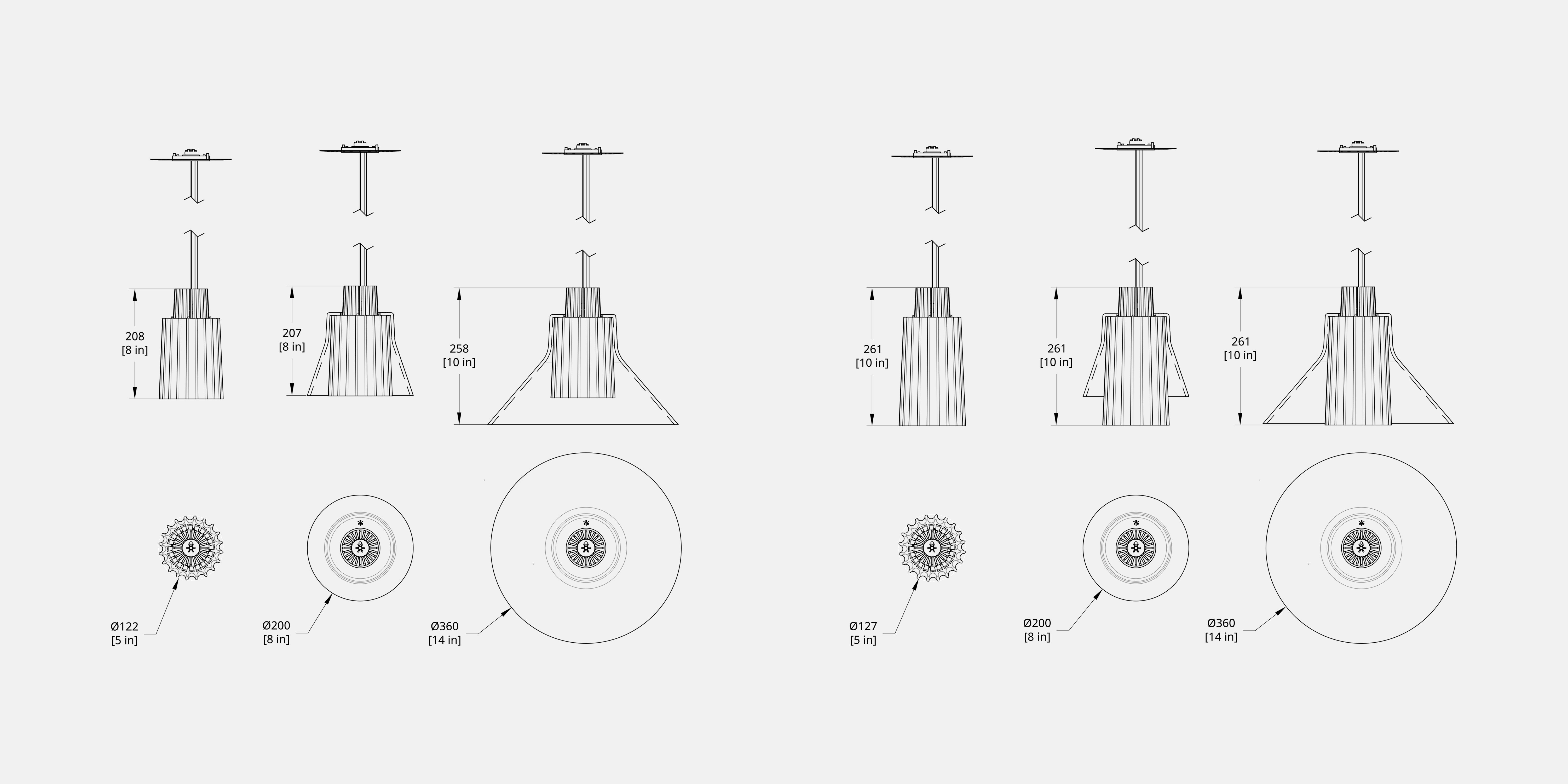

ample technical drawing, trimless canopy

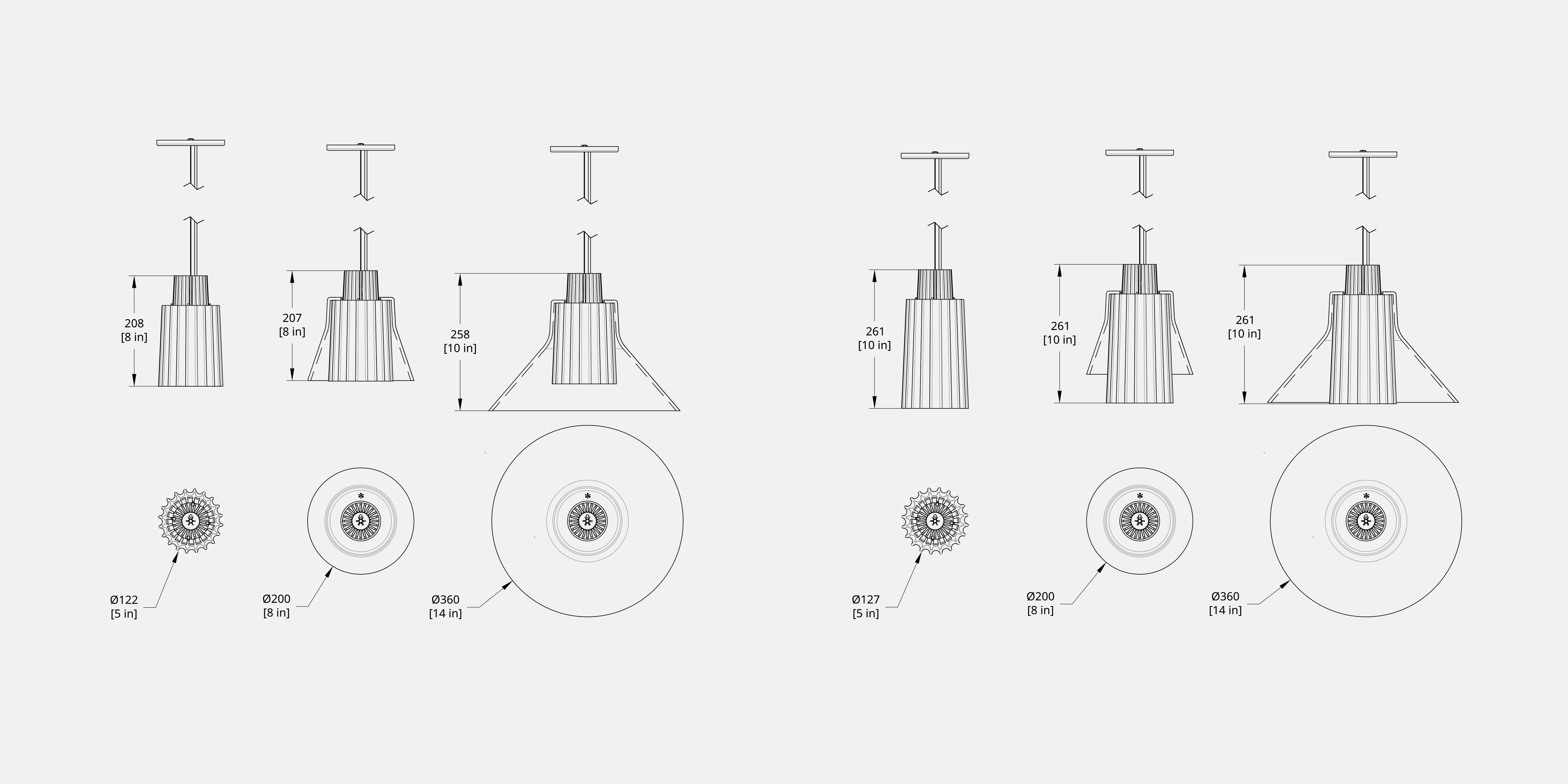

ample technical drawing, flat canopy
575 Boices Ln Kingston NY 12401 T +1 212 388 1621 sales@rbw.com
- Ample
- Pendants
575 Boices LnKingston NY 12401T +1 212 388 1621sales@rbw.com
For 2D & 3D drawings of all products, including CAD, Revit and IES files, please visit rbw.com
Price available on request
ample technical drawing, trimless canopy
ample technical drawing, flat canopy
- Ample
- Pendants
Overview
Description
Description
Ample™ is a high-output pendant with a visible heat sink, using layered silicone and glass. Available in a wide range of modular designs, Ample™ casts a soft, diffused light with configurable expression.
Details
Materials
Glass, Aluminum, SiliconeCollection Notes
Each form of glass is unique. As part of the production process, there may be small air bubbles within the glass.Performance
- No Shade, Short Diffuser: 1231lm
- No Shade, Long Diffuser: 943lm
- Small Shade (Clear), Short Diffuser: 1065lm
- Small Shade (Clear), Long Diffuser: 923lm
- Power Consumption, DC 14.2W
Led Lifespan
- 50k hours
Certification
UL Listed
UL Listed to Canadian safety standards.
- Suitable for Damp Locations
- IP20
Note on Imagery
All product photos are made using the correlated color temperature (CCT) of 2700k. The actual color temperature experienced within your environment may vary based on other light sources and materials present.
Dimensions
Suspension
- Canopy configurations : White 7" Round Deep Canopy, White Trimless Canopy, White Flat Canopy
- Stem mount (matte white) or Cable suspension (white)
- Cable suspension: min hang height of 6", max of 72"
- Stem height: 14" standard, contact sales@rbw.com for custom lengths
- Field trimmable
Product Dimensions
Small Diffuser, No Shade - 8”h x 5”dLarge Diffuser, No Shade - 10”h x 5”dSmall Diffuser, Small Shade - 8”h x 8”dLarge Diffuser, Small Shade - 10”h x 8”dSmall Diffuser, Large Shade - 10”h x 14”dLarge Diffuser, Large Shade - 10”h x 14”dProduct Weight
Small Diffuser, No Shade: 6lbsLarge Diffuser, No Shade: 7lbsSmall Diffuser, Small Shade: 9lbsLarge Diffuser, Small Shade: 10lbsSmall Diffuser, Large Shade: 11lbsLarge Diffuser, Large Shade: 12lbsTechnical Drawings
Scroll to view more technical drawings of this product, tap the center of image to zoom.
